WBH

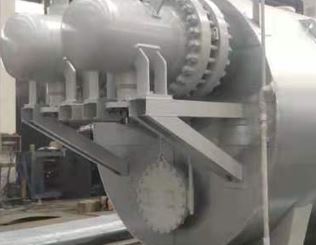

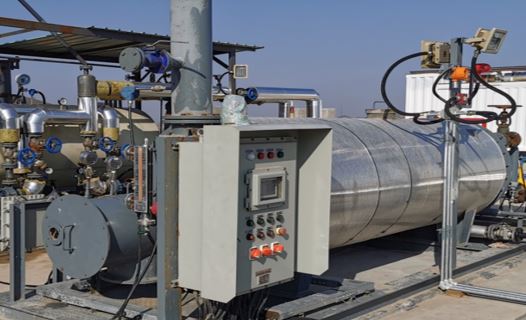

-Water Bath Heater
水套加热炉
Characteristic
- Automatic control on the heat load through PLC
- Choice of gas burner, oil burner or combined gas & oil burner
- Natural or forced draught burner
- Modular design and low pressure operation
- Remote control with flame monitor and automatic control
- High thermal efficiency
- Applicable for crude oil, natual gas, LPG & LNG
- Multi-layer coil system to heat different process fluids
- Design in accordance with API 12K
- Can be provided with flame arrestor, expansion tank and stack
- Coil designed to ASME VIII
特点
- 通过PLC自动控制热负荷
- 可选择燃气、燃油或油气组合式燃烧器
- 自然或强制通风燃烧器
- 模块化设计和低压操作
- 远程火焰监控和自动控制
- 热效率高
- 适用于原油，天然气，液化石油气和液化天然气
- 多层盘管以满足各种工艺流程加热需求
- 按照API 12K或国内水套炉标准进行设计
- 可配备阻火器，膨胀水箱和烟囱
- 盘管ASME VIII或国内GB150压力容器标准设计
Technical Parameters
- Capacity:100kw〜10,000kw
- Operating pressure: 0～+0.4MPa(G) shell side/1.0～40MPa(G) tube side
- Medium to be heated: natural gas crude oil, water etc
技术参数
- 负荷：100kW~10000kW
- 工作压力：0~+0.4MPa(G)壳程/1.0~40MPa(G)管程
- 加热介质：天然气，原油，水等
