THOS
-Thermal Oil Heating System

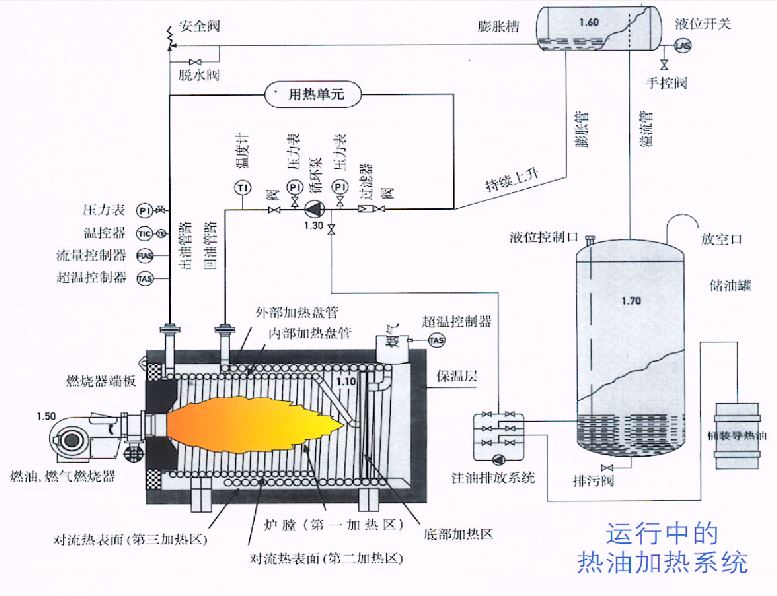

Thermal oil heating system is composed of mainly thermal oil heater (equipped with safety and interlocking protection system), thermal oil circulation pump(s), automatic instrument control system (including control cabinet), burner, valves, expansion tank, storage tank, nitrogen snuffing system, and automatic system for pumping and draining of thermal oil.
有机热载体供热系统
有机热载体供热系统主要由有机热载体炉(配备安全联锁保护系统)，热油循环泵，自动仪表控制系统(就地控制柜)，燃烧器，阀门管线，膨胀罐，储油罐，氮气灭火系统，过滤系统，旁路调节系统，以及用于注油和排油的自动系统等组成。
Characteristic
- Provide user with stable and high temperature thermal source
- Best adjustment to process temperature of heat exchanger
- Automatic control on the heat load through PLC, stable and safe operation
- Optimum design of fuel supply system to ensure high combustion efficiency and safe operation
- Automatic alarming in emergency
- Easy installation with minimal cost due to modular design
- Optimum structure of combustion chamber to prevent oil from overheating or coking
- Fully-closed coil system to extend service life
- Thermal efficiency up to 90%
特点
- 为用户提供稳定的高温热源
- 适合的工艺温度调整
- 运行稳定安全
- 通过PLC自动控制热负荷
- 优化燃料供应系统设计，确保高燃烧效率和安全运行
- 紧急情况下自动报警
- 采用模块化设计，安装简便，成本较低
- 燃烧室的优化结构，防止油过热或结焦
- 全封闭管路系统，延长使用寿命
- 热效率高达90％以上
Technical Parameters
- Capacity:100kw〜100,000kw
- Outlet temperature of thermal oil:≦400℃
技术参数
- 负荷：100kW~100000kW
- 导热油的出口温度：≤400℃
